How to Repair Patio Umbrella Tilt Mechanism Fast

Most patio umbrella tilt problems come down to one of four things: a tilt button clogged with grit and not seating fully, a worn locking pin that no longer catches, a cord or strap that's snapped inside an auto-tilt system, or loose/misaligned hardware at the hinge point. In most cases you can fix the issue yourself in under an hour with basic tools and a few dollars in parts, and you won't need to buy a new umbrella.

Safety checks before you touch anything

Before you start poking around the mechanism, do a quick safety pass. Close the canopy if it's currently open, and move it somewhere stable, ideally laid flat on a lawn or a padded table. Never work on a tilt mechanism while the umbrella is up in a stand in any amount of wind. Manufacturers like East Oak are explicit: never use the tilt function in even a light breeze, and never force the crank. If you force a stuck mechanism you can strip gears, crack a housing, or snap a cord, turning a cheap repair into an expensive one.

Once the umbrella is safely down, take a minute to identify exactly what's broken. The symptom tells you where to look, so be specific with yourself. Walk through these questions before grabbing any tools.

• Does the tilt button press in but the umbrella won't tilt? (Button likely clogged or pin worn)
• Does the button feel stuck and won't press at all? (Grit packed in the housing, or button is broken)
• Does the umbrella tilt but then flop back down or won't lock in position? (Pin not catching, worn locking tab, or cord issue)
• Does the canopy tilt unevenly, with one side higher than the other? (Rib not seated on hub, or bent strut)
• Is this an auto-tilt model where tilt is controlled by the crank? (Different diagnostic path, covered below)
• Is the whole umbrella leaning and wobbling rather than just not tilting? (That's a pole or base connection issue, not the tilt mechanism)

That last one is worth pausing on. If the umbrella leans and feels wobbly all over, check the base connection and the pole joint first. A loose pole-to-base connection mimics a broken tilt and is a much simpler fix. True tilt mechanism problems are localized to the collar area on the pole, just below or at the hub.

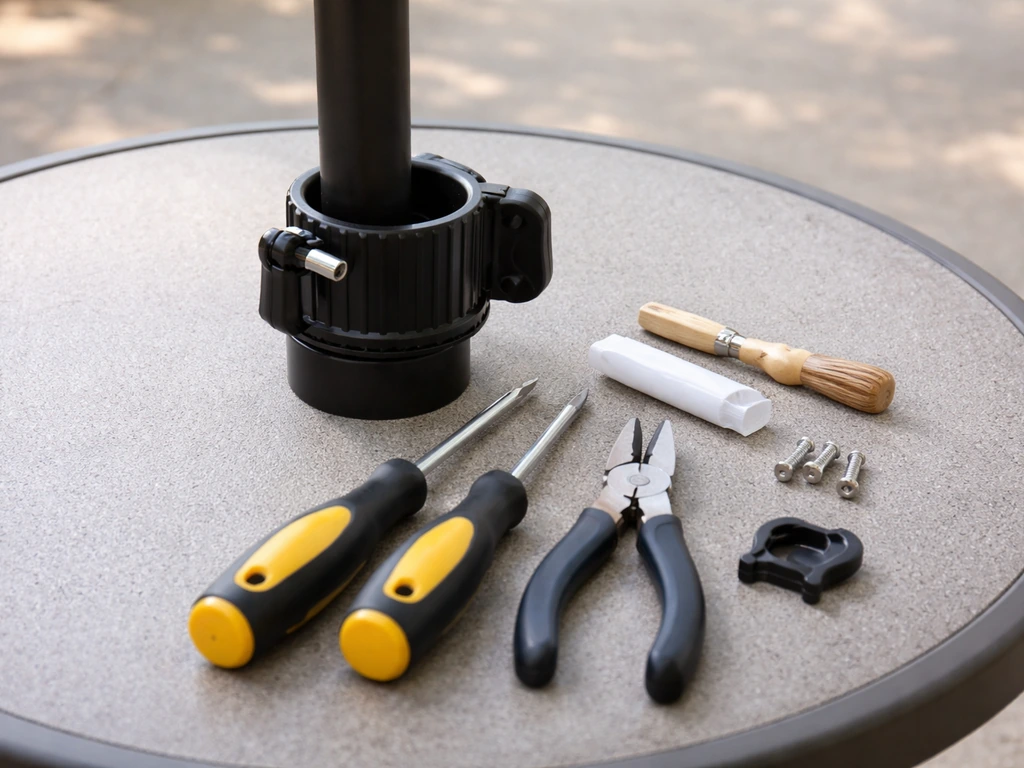

Tools and parts you'll likely need

You don't need a full toolkit for most tilt repairs. Here's what to have on hand before you start so you're not hunting around mid-repair.

• Flathead screwdriver (for prying out a stuck button or switch housing on some models)
• Phillips head screwdriver
• Needle-nose pliers (for pulling out a stuck or broken pin)
• Adjustable wrench or correct-size socket (for tightening hinge bolts and collar hardware)
• Silicone spray lubricant (NOT WD-40 — more on this below)
• Dry PTFE spray (best for auto-tilt slider channels and plastic gear areas)
• Soft brush or old toothbrush (for clearing grit from the button housing)
• Compressed air can (optional but helpful for blowing out packed debris)
• Replacement tilt button/pin (if worn — match by brand and pole diameter)
• Replacement tilt cord or strap (for auto-tilt models with a snapped cord)
• Small zip ties or electrical tape (for temporary cord routing holds during reassembly)

A quick note on lubricants: silicone spray is the right call for metal pivot points, hinges, and button housings. For auto-tilt models with plastic slider channels and gear sets, use dry PTFE spray instead. WD-40 is a degreaser, not a lubricant. It will attract dust and eventually gum up the mechanism, which is the opposite of what you want. Avoid it entirely on patio umbrella tilt parts.

When it comes to replacement parts, tilt mechanisms are not universal. Manufacturers use different pole diameters, pin sizes, cord lengths, and housing shapes. Before you order anything, note your brand, model number (usually on a sticker on the pole or base), and measure your pole diameter. Treasure Garden, California Umbrella, Tropitone, and others all have model-specific parts, and even within a brand, a tilt cord for one series won't necessarily fit another.

Inspecting the tilt button, catch, and linkage

The tilt button (also called the tilt catch, locking pin, or push-button release depending on the brand) is the most common failure point on push-button tilt umbrellas. If your umbrella tilt is off, start by checking the button, pin, and hinge area for the most common causes fix patio umbrella tilt without replacing the whole umbrella. It's the spring-loaded button on the collar of the pole, usually sitting just below the hub. When you press it, it retracts a pin so the tilt collar or hinge can move. When you release it, the pin springs back into a hole to lock the angle. Here's how to inspect it properly.

1. Locate the button on the collar, typically on the front or side of the pole below the hub.
2. Press it slowly and watch whether it moves freely, sticks partway, or doesn't move at all.
3. Release it and check whether it springs back cleanly to the fully extended position.
4. Look for any visible cracks on the button face or housing around it.
5. Check the hole in the pole where the pin seats: look for debris, corrosion, or deformation.
6. Brush out any grit from around the button and its housing with a toothbrush or compressed air.
7. After cleaning, press again and check for improvement before assuming the pin itself is worn.

If the button moves freely after cleaning but still doesn't lock the tilt, the locking pin is likely worn down and no longer catches the hole properly. This is the most common mechanical failure on push-button tilt umbrellas, and it almost always requires replacing the button/pin assembly.

Also inspect the linkage and hinge arms around the tilt collar. On most push-button umbrellas the tilt collar is a plastic or metal ring that rotates around the pole at a pivot point. Check the hinge bolt or pivot screw: if it's loose, the collar will wobble and tilt unevenly even if the button is working fine. Treasure Garden's tilt manuals specifically describe lining up the button with its hole and snapping it into place, which tells you the alignment of the button to the pole hole is a precise fit. If someone has forced the tilt, that hole can get slightly wallowed out, preventing a good lock.

Troubleshooting by symptom

Different tilt problems have different root causes. Here's a breakdown of the most common symptoms and what's actually causing them.

Push-button tilt: button won't press or feels frozen

Almost always this is dried grit, debris, or corrosion packed into the button housing. Patio umbrellas sit outside for months and the button housing acts like a little trap for dirt and dust. Clean it thoroughly first. If the button is physically cracked or the spring inside is broken, the whole button assembly needs to come out and be replaced.

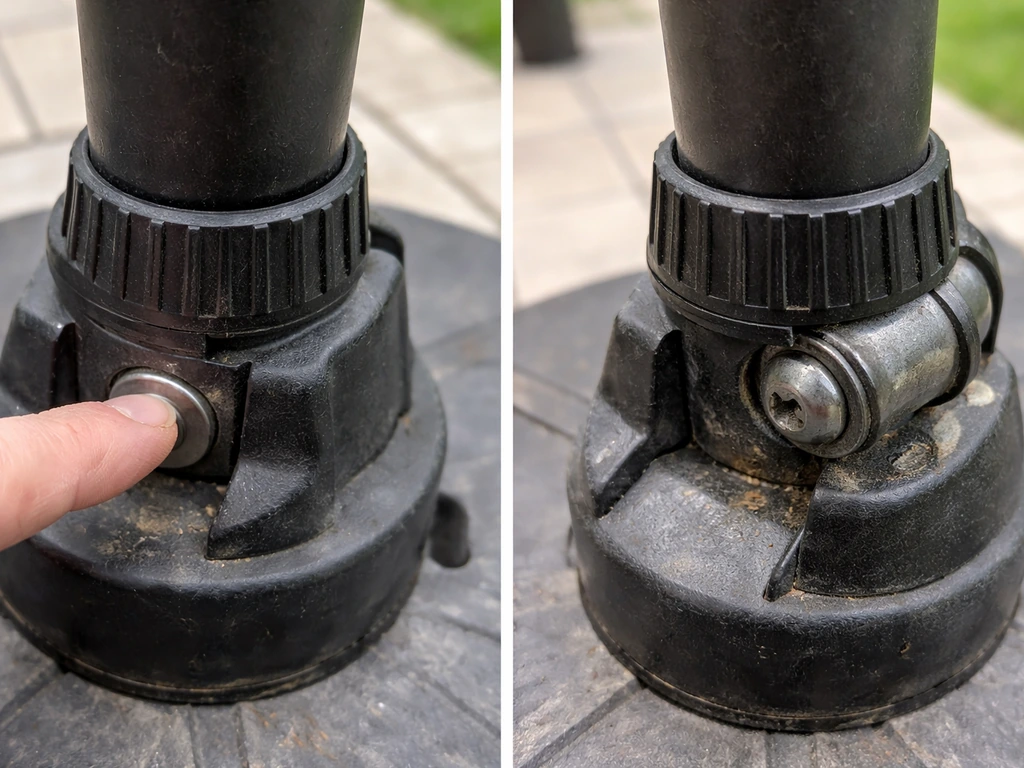

Push-button tilt: button works but umbrella won't tilt or won't stay tilted

If the button depresses normally but the umbrella won't tilt, the collar's pivot point is likely seized or the hinge bolt is so tight the joint can't move. Try lubricating the pivot and loosening the hinge bolt slightly. If the umbrella tilts but won't stay put, the locking pin is worn and not engaging the catch hole. You need a new pin or button assembly.

Auto-tilt (crank-through): tilt not engaging when cranking

On auto-tilt models, the tilt activates at the end of the crank's travel, after the umbrella is fully open. If you haven't cranked it far enough for the hub to hit the stop ring, the tilt simply won't engage. That's not a broken mechanism, it's an operation issue. Crank fully open first. If the tilt still won't engage after that, the most common culprits are: a tilt cord or strap that has snapped inside the pole, grit jamming the slider gear, or a lock knob/collar that wasn't fully released before cranking.

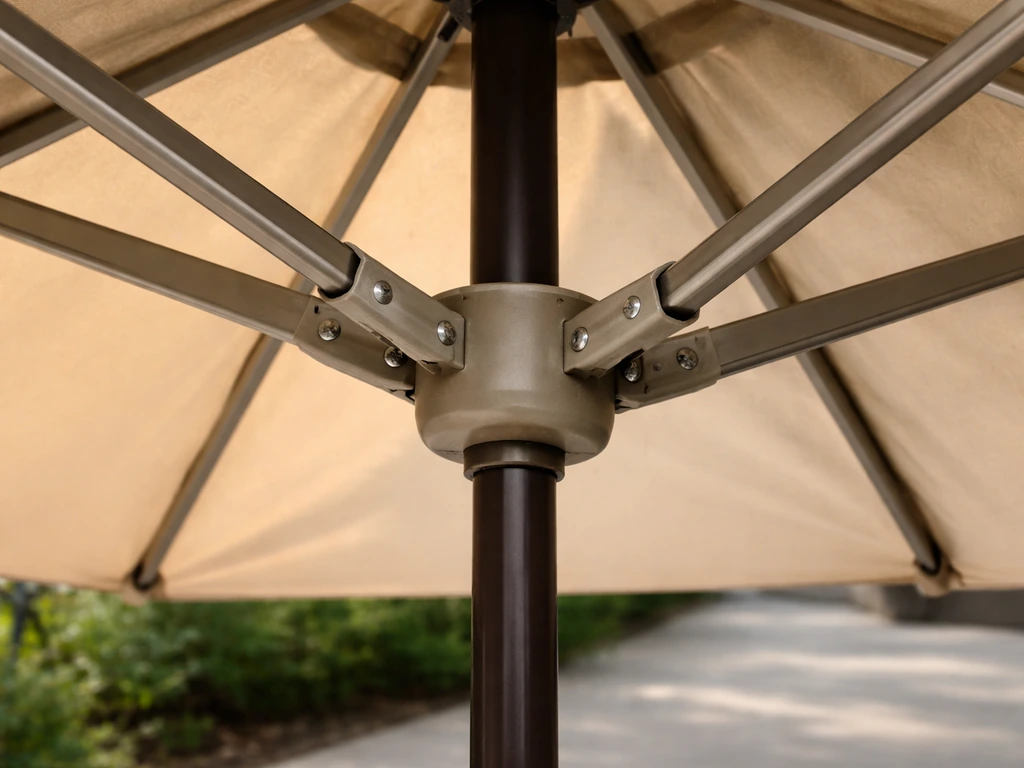

Uneven or lopsided tilt

If the canopy tilts but one side hangs lower than the other, look at the ribs first, not the tilt mechanism. A rib that's not properly seated on the hub, or a bent rib strut, will cause the canopy to tilt unevenly when the mechanism itself is perfectly fine. Open the umbrella fully and check each rib where it connects to the main hub. Re-seat any that have popped off their hub socket. If a rib strut is visibly bent, that strut needs replacing.

Tilt locks at a weird angle or won't reach upright

This typically means the locking pin isn't going flush with the pole when it should be. The pin may be bent, the catch hole may be deformed, or on auto-tilt models the slider may not be traveling far enough through its channel. Check the pin visually and feel whether it's bottoming out smoothly in the hole.

Step-by-step repair paths

Work through these in order from simplest to most involved. Start with cleaning and lubrication before you ever think about replacing parts. To do the repair safely and correctly, it's also helpful to review how to tip patio umbrella so you know what angle and motion you should expect from the mechanism.

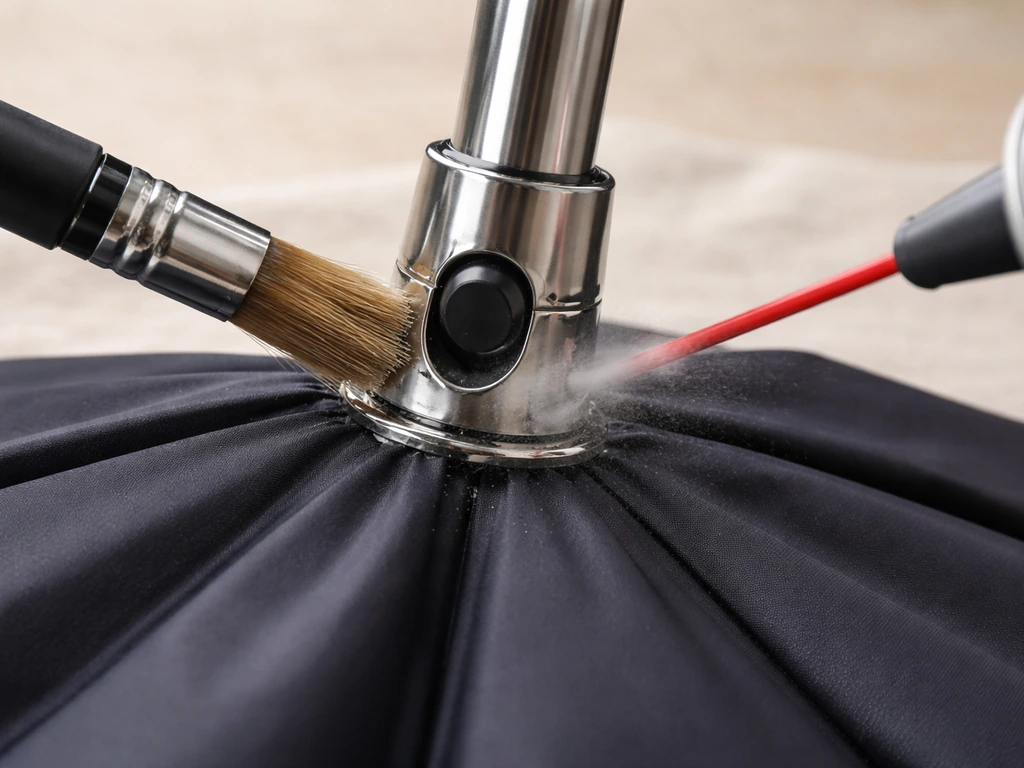

Path 1: Clean and lubricate (try this first on any stuck or sluggish tilt)

1. Lay the umbrella on a flat surface so the tilt collar is easily accessible.
2. Use a brush and compressed air to clear all debris from around the button, the button housing, and the collar-to-pole joint.
3. Spray a short burst of silicone lubricant directly into the button housing gap and around the pivot/hinge point.
4. For auto-tilt slider channels, use dry PTFE spray instead of silicone spray, and wipe away any excess after spraying.
5. Work the button in and out several times and rotate the tilt collar through its range to distribute the lubricant.
6. Let it sit for two to three minutes, then test again.

Path 2: Re-seat and align the button or tilt collar

1. If the button appears misaligned with its pole hole, check whether the collar has rotated slightly out of position.
2. Loosen the retaining hardware on the collar (usually a small bolt or screw) enough to allow the collar to be repositioned.
3. Line up the button housing hole directly with the pole hole, as described in Treasure Garden's own assembly guidance.
4. Snap or press the button back into alignment and tighten the retaining hardware snugly but not so tight the collar can't pivot.
5. Test the button: it should press smoothly and spring back with a distinct click into the hole.

Path 3: Tighten loose hardware at the hinge or pivot

1. Find the pivot bolt or hinge screw that the tilt collar rotates around.
2. Check whether it's loose by trying to wiggle the collar by hand.
3. Tighten the bolt with the correct wrench or socket until there's no play, but stop before the joint becomes too stiff to tilt smoothly.
4. If the bolt threads are stripped, replace the bolt with a matching size and thread pitch.

Path 4: Replace a worn or broken tilt button/pin

1. Order the correct replacement button assembly for your brand and model. Match pole diameter exactly.
2. Remove the old button by pressing it in and using needle-nose pliers to pull the pin out from the side, or by using a flathead screwdriver to pry out the housing if it's a snap-in type. Some brands (like Vrienden's smooth runner system) require laying the umbrella on its side and prying out a switch with a flat screwdriver to access the button assembly.
3. Note the spring orientation before pulling the old button fully out.
4. Insert the new button/pin assembly, making sure the spring is correctly seated.
5. Press the button to check travel and confirm it springs back fully and locks into the pole hole.

Path 5: Replace a snapped tilt cord or strap (auto-tilt models)

1. Open the collar housing or crank mechanism cover to access the cord path inside the pole.
2. Note exactly how the old cord routes through the pole before removing it. Take a photo.
3. Cut out or pull the old cord. Remove any frayed ends from the pulley or guide channels.
4. Thread the new cord along the same route, inserting one end through the tilt degree mechanism until it comes out at the top, matching the original routing.
5. Knot or clip the cord ends at their attachment points using the same method as the original.
6. Check that the cord runs freely through any pulleys or guide channels without binding.
7. Make sure you order a brand and model-specific replacement cord. A Treasure Garden auto-tilt cord, for example, is a specific part with its own model number and length. A generic cord is likely to be the wrong length and will affect tilt range and catch engagement.

Path 6: Replace a damaged crank/tilt gear assembly

If the gears in an auto-tilt crank are stripped or the housing is cracked, internal repair isn't practical. The whole crank/tilt gear assembly needs to come out. This is still a reasonable DIY job. Loosen the retaining hardware on the crank housing, note how the lift cord connects and routes through the pole (take photos before disconnecting anything), and swap in the new assembly following the same cord path. Again, crank assemblies are brand and model specific, so verify compatibility before ordering. If you're not sure whether replacement is worth it, consider the age of the umbrella and the cost of the part versus a new umbrella.

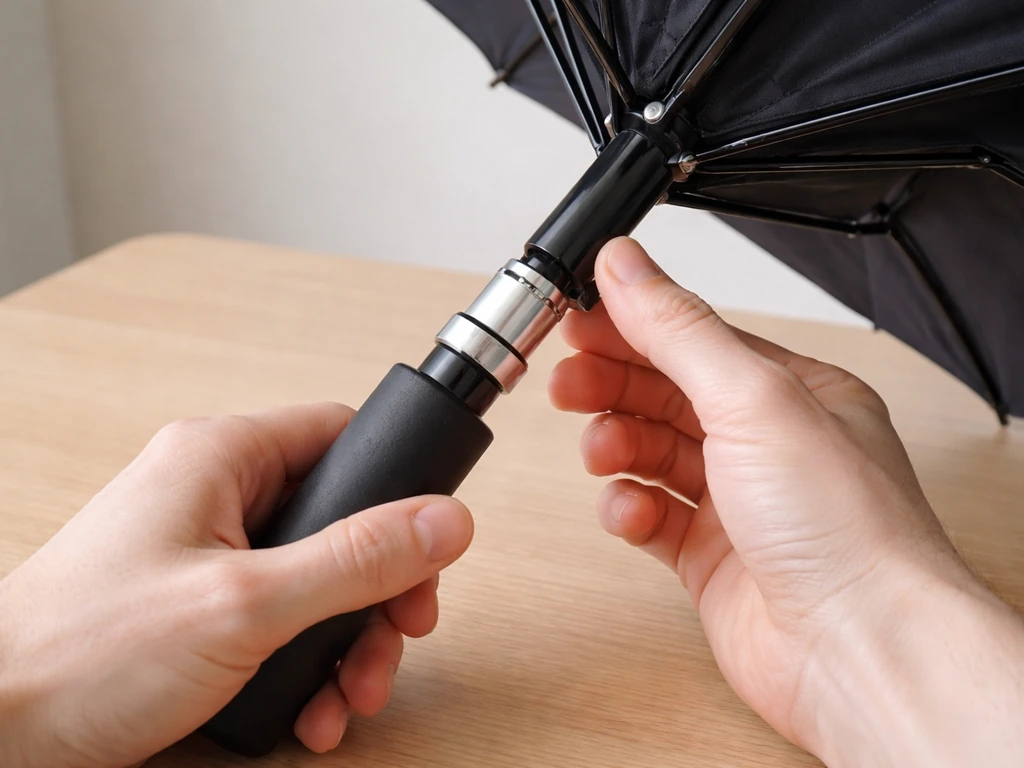

Reassembly, testing, and confirming smooth operation

Once you've made your repair, take a few minutes to reassemble and test properly rather than just putting it back in the stand and hoping for the best.

1. Before putting the umbrella back in the stand, operate the tilt through its full range by hand. It should move smoothly from upright to full tilt and back with no catching, grinding, or wobbling.
2. Press the tilt button and confirm it locks at each intended angle position with a definite click or firm stop.
3. For auto-tilt models, crank the umbrella fully open first until the hub hits the stop ring, then continue cranking to engage the tilt. The tilt should begin engaging gradually rather than lurching.
4. Check that the canopy angle is even across the full width. Stand in front and look at the rib tips: they should form an even arc. If one side is lower, re-check your rib seating at the hub.
5. Put the umbrella back in the stand and do a final tilt test at normal use height. Gently push the canopy by hand while tilted to confirm the lock is holding and there's no unexpected flex at the collar.
6. Home Depot's umbrella manual says it well: push the tilt button and gently guide the angle. If you're having to push hard or force any part of the motion after your repair, stop and go back through the inspection steps.

Keeping the tilt mechanism working through seasons and storage

Most tilt mechanism failures are preventable. The two biggest killers are grit buildup and dried-out joints, both of which come from leaving the umbrella out year-round without any maintenance. Here's what actually makes a difference.

• Lubricate the tilt button housing and pivot point once per season with silicone spray. Occasional lubrication is the manufacturer-recommended standard across brands including Tropitone and NFM. Don't over-lubricate: a couple of short bursts is plenty.
• Use dry PTFE spray on auto-tilt slider channels and plastic gears specifically. Silicone spray on plastic can be fine, but PTFE is the safer, cleaner choice for those parts.
• Never use WD-40 on any tilt component. It's a degreaser and will attract more dirt over time.
• At the end of each season, close the umbrella, tilt it to upright, and lock the button before storing. Storing with the tilt locked reduces stress on the hinge and pivot.
• When storing for winter, brush out the button housing and collar area before putting the umbrella away. Dirt left in there over winter gets damp and becomes the grit that causes problems the following spring.
• Use an umbrella cover during storage and during long periods of non-use. This keeps debris out of the mechanism as much as it protects the fabric.
• Don't force the tilt if it feels stiff coming out of storage. Apply lubricant first and let it work in for a few minutes before trying to tilt. Forcing a cold, stiff mechanism is how buttons break and pins get bent.
• Check the hinge bolt and collar hardware at the start of each season and tighten if needed. Outdoor hardware works itself loose over winter through thermal expansion and contraction.

If you're dealing with a brand-new umbrella that won't tilt correctly right out of the box, the fix is almost always a misaligned button that didn't get fully snapped into place during assembly. Go back through Path 2 above before assuming anything is defective. And if you're still working out the basics of how your specific tilt type is supposed to operate, it helps to first understand the normal operation of your system so you can tell what's actually wrong versus what's just unfamiliar. If you are still learning how to tilt a patio umbrella, focus on the exact operating steps for your tilt type before troubleshooting parts.
