What Does Auto Tilt Mean on a Patio Umbrella?

Auto tilt on a patio umbrella means the tilting function is built right into the crank handle. If your patio umbrella tilt seems off, you can usually correct it by checking the crank mechanism and adjusting the tilt pivot as needed tilting function. You open the umbrella by cranking as usual, and once the canopy is fully open, you just keep cranking in the same direction to angle it toward or away from the sun. No separate lever, no knob to hunt for, no guesswork. It's one continuous motion: open, then tilt, all from the same handle.

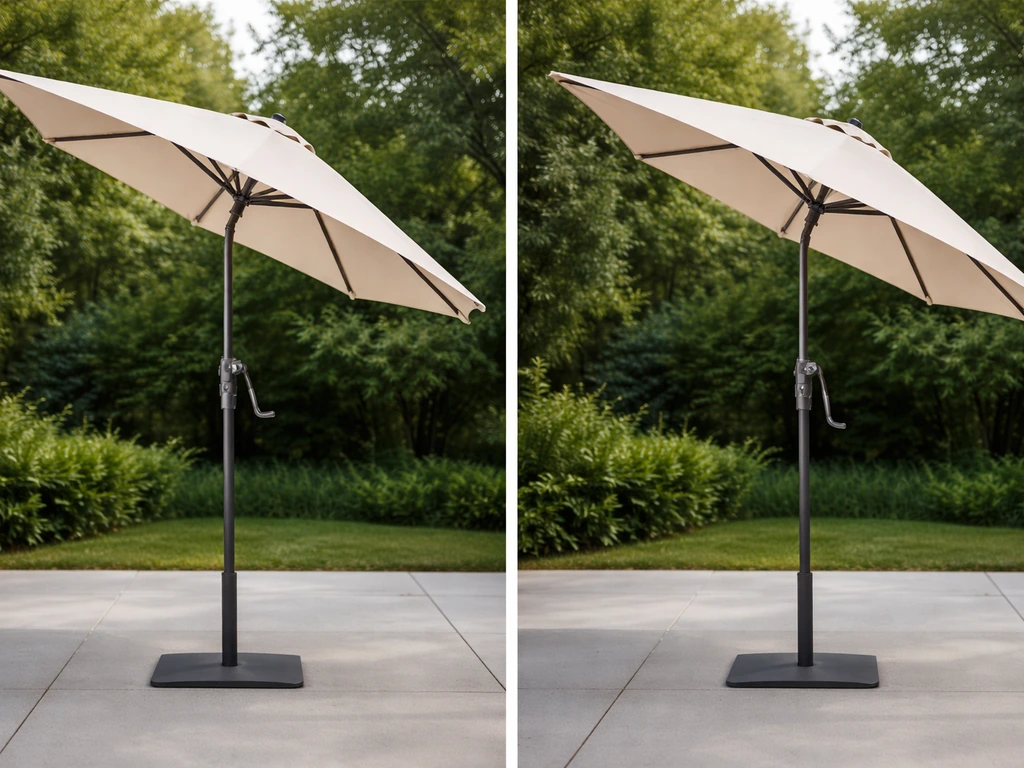

What auto tilt actually means (and how it's different from manual)

The term gets used loosely, but the core idea is that the tilt is integrated with the crank mechanism rather than being a separate operation. With a traditional manual tilt umbrella, you open the canopy first using a pulley or crank, then you physically push a button or flip a collar on the pole to release the canopy and lean it by hand. Auto tilt removes that two-step hassle. After the canopy reaches full open position, the crank automatically engages an internal gear that drives the tilt, so you never have to touch the pole itself.

Some brands, like Treasure Garden, describe this as a way to "follow the sun" throughout the day, which is the real practical benefit. Instead of repositioning your furniture or tolerating glare, you adjust the tilt in about ten seconds without getting up. That's the whole point of the feature.

How auto-tilt mechanisms actually work inside

Inside the crank housing, a small internal gear transfers the rotation of your handle to a larger spool or drum. When you crank to open the umbrella, the cord-and-rib system pulls the canopy up. Once the ribs hit their fully-open stop point, the cord tension peaks and the gear system shifts the energy instead to the tilt pivot at the top of the pole. From that point on, every turn of the crank angles the canopy rather than lifting it further.

Most auto-tilt umbrellas on the market today use what's called a crank-through tilt: the opening and tilting happen on the same axis via the same crank. A variation sometimes called push-tilt (Treasure Garden's Glide Tilt is an example) requires you to press down on a button or the crank housing itself after fully opening, which then engages the tilt gear. Cantilever umbrellas work differently still: Treasure Garden's AG25T model, for instance, uses an adjustment knob you loosen to release a sliding car on a track, which you move to your desired angle before locking the knob back down. If you have a cantilever, the tilting process is manual even if the umbrella is otherwise motorized.

All crank-through auto-tilt models have a hard stop built in. SunVilla's 10-foot auto-tilt market umbrella, for example, stops automatically at a maximum tilt of 30 degrees. You'll feel the crank resist and stop turning when you hit that limit. Don't force it past that point.

How to use auto tilt day to day

The exact steps vary slightly by brand, but for most crank-through auto-tilt umbrellas (Treasure Garden UM812, UM810, UM8810RT, SunVilla, Member's Mark, and similar models) the process is the same: Follow the steps in your specific model’s manual to learn exactly how to tilt a patio umbrella using its auto-tilt crank mechanism.

1. Loosen the ribs if your model requires it (some Treasure Garden models have a rib collar you unlock before opening).
2. Turn the crank clockwise to open the canopy fully. Keep cranking until you feel the resistance increase and the ribs are fully extended.

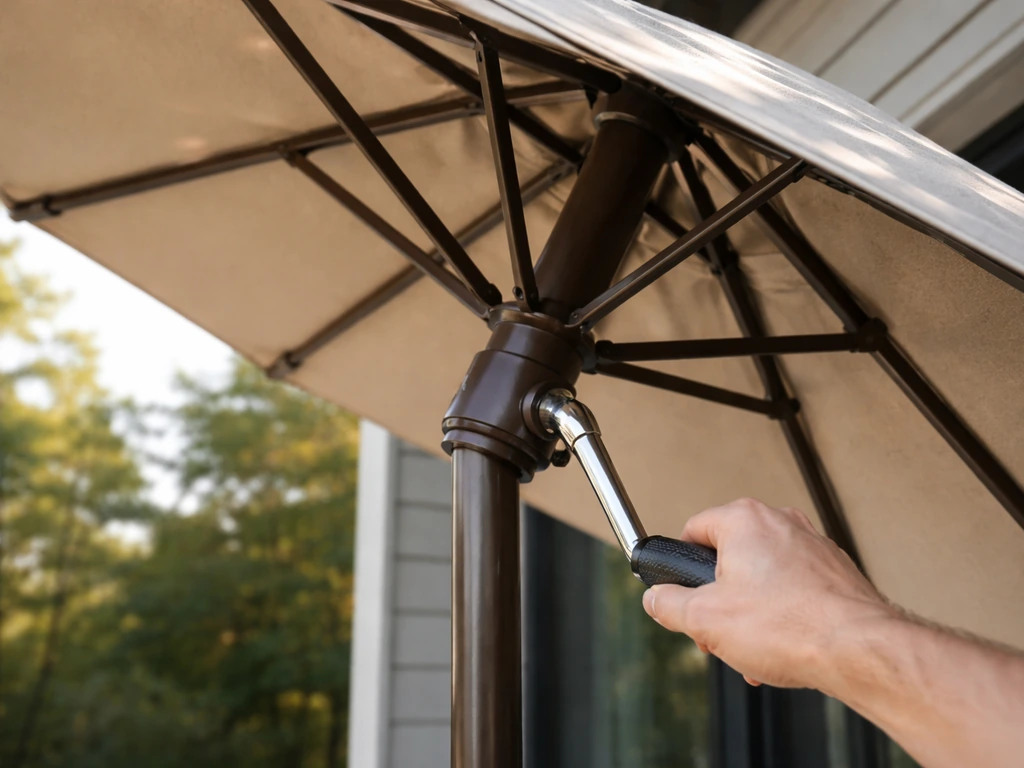

3. Without stopping or changing direction, continue turning the crank clockwise. The canopy will begin to angle.
4. Stop cranking when the canopy reaches the shade angle you want. The crank-through auto-tilt stops itself at the maximum tilt (typically 30 degrees), so you can't over-tilt accidentally.
5. To return to horizontal, turn the crank counterclockwise until the canopy is level again, then keep going counterclockwise to close and lower the canopy.

The most common mistake people make is stopping the crank when they feel the canopy reach full open, assuming something is wrong when resistance increases. That resistance is exactly when you should keep going. The transition from opening to tilting is intentional and built in. Go slow on your first try so you can feel the mechanical shift.

If you have a push-tilt or Glide Tilt model, you'll open fully first, then press down on the designated button or housing before continuing to crank. Check your specific manual, because forcing a push-tilt without pressing the release first can damage the internal gear.

For cantilever models like the AG25T: stand behind the umbrella, turn the adjustment knob counterclockwise to disengage it from the track, slide the car up or down to your desired angle (keeping your hands well away from the main frame during this step), then tighten the adjustment knob clockwise to lock the position. The AG25T has a maximum back angle of 30 degrees from ground level, so don't push the slider past the end of the track.

When auto tilt won't work right: troubleshooting common problems

Auto-tilt problems almost always fall into a few categories. If your patio umbrella tilt mechanism feels stuck or won’t engage smoothly, repairing the internal gear, cord tension, and tilt pivot is usually the next step how to repair patio umbrella tilt mechanism. Here's how to work through them from simplest to most involved.

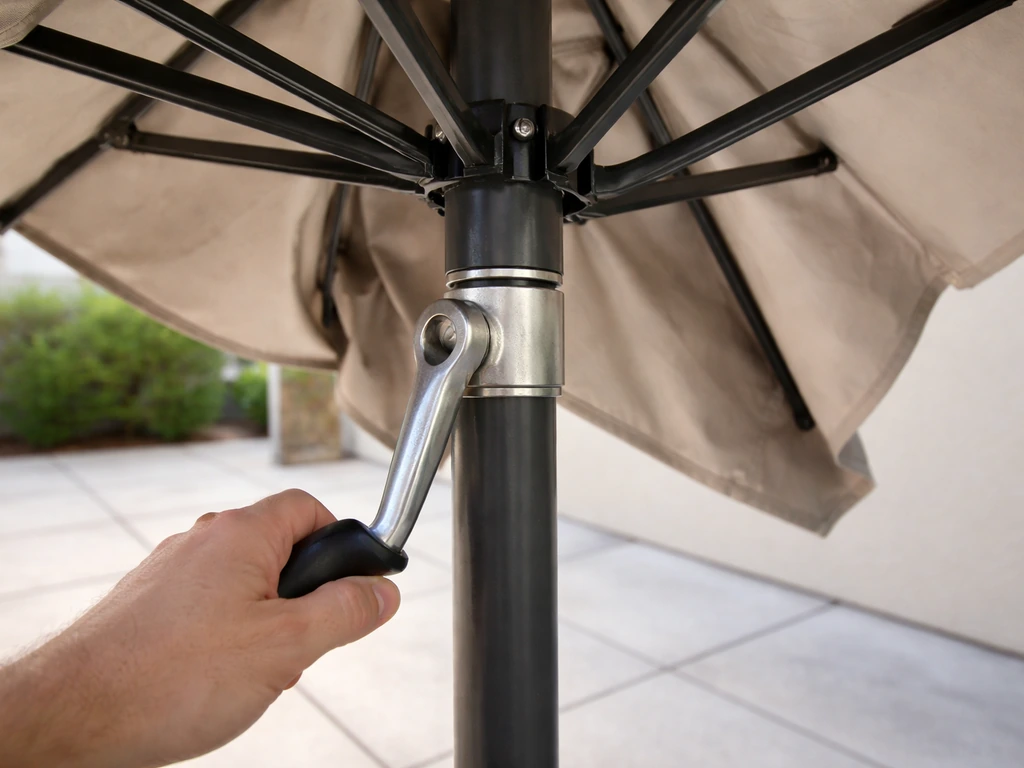

The crank turns but the canopy won't tilt at all

1. Make sure the canopy is fully open first. The tilt won't engage until the ribs have reached their fully extended stop. If the canopy is only 80% open, keep cranking to open it completely before expecting tilt to kick in.
2. Check whether your model is a push-tilt type. If there's a button or a collar on the crank housing, you need to press or engage it before the tilting phase starts. Skipping that step is the number one reason push-tilt umbrellas seem unresponsive.
3. Look at the rib collar or hub at the top of the canopy. If a rib is bent or has jumped out of its socket, it can block the canopy from reaching full open, which prevents the tilt from engaging.
4. Inspect the crank housing for cracks or stripped teeth. A stripped internal gear is a repair job, but replacement crank assemblies are available for most brands and are usually inexpensive.

The canopy tilts only partway or feels stiff

1. Lubrication is almost always the answer here. The internal pivot point and gear contact surfaces dry out over time, especially after a winter outdoors or a wet season. Apply a non-corrosive lubricant (silicone spray or a light machine oil) to the tilt pivot at the top of the pole and to the crank gear teeth. Work the crank back and forth a few times after applying.
2. Check for dirt or debris packed around the pivot housing at the canopy hub. A damp cloth and a thin brush can clear blockages that create friction.
3. If the umbrella was stored collapsed for a long time, the tilt mechanism can be stiff from inactivity. Work it slowly through several tilt and return cycles before concluding something is broken.

The canopy tilts unevenly or droops to one side

1. Inspect all the ribs and struts while the umbrella is fully open. A bent or cracked rib puts uneven load on the canopy and causes lopsided tilt.
2. Check the tilt pivot housing for cracks. If the housing that holds the tilt mechanism at the top of the pole is damaged, the whole assembly can shift under the weight of the canopy.
3. For cantilever models, make sure the adjustment knob is fully tightened after setting the tilt angle. A partially locked knob lets the slider creep, which causes the canopy to drift.

The tilt won't return to horizontal

1. Turn the crank counterclockwise deliberately and slowly. Some crank mechanisms need more rotations to reverse than people expect. Count your turns: if it took 8 turns to reach maximum tilt, you may need 8 or more turns back.
2. If the crank spins freely without moving the canopy back, the return gear or cord may be worn or broken. This is a repair job covered in dedicated tilt mechanism repair guides.
3. On cantilever models, loosen the adjustment knob before trying to move the slider back. Trying to force a locked slider will strip the knob threads.

Keeping the auto-tilt mechanism in good shape

Lubrication is the single most effective thing you can do for an auto-tilt umbrella. At the end of each season, clean the tilt pivot and the crank gear housing with a dry cloth to remove grit and old lubricant residue, then apply a fresh coat of non-corrosive lubricant (silicone spray works well and won't attract dirt the way oil-based products can). Work the mechanism through a full open-tilt-close cycle so the lubricant distributes evenly, then store the umbrella covered or indoors.

At the start of each season, before you rely on the umbrella, run through a full operational check: open it completely, crank through the tilt range, return to horizontal, and close. If anything feels gritty, stiff, or skips, address it before hot weather arrives. Treasure Garden specifically recommends that any defects found after winter storage be repaired by a professional before putting the umbrella back into service, which is sound advice for anything structural.

• Wipe the pole and tilt housing down after rain to prevent water from sitting in crevices and corroding the gear contact surfaces.
• Inspect ribs and struts monthly during the season. A small bend caught early is a simple fix; a broken rib mid-season puts extra stress on the tilt mechanism.
• Don't let the umbrella sit fully open and unattended for extended periods. UV and wind exposure accelerates wear on the tilt pivot more than active use does.
• Check that tilt hardware (bolts, set screws, or locking knobs) is snug at the start and middle of each season.

Safety and wind management with auto-tilt umbrellas

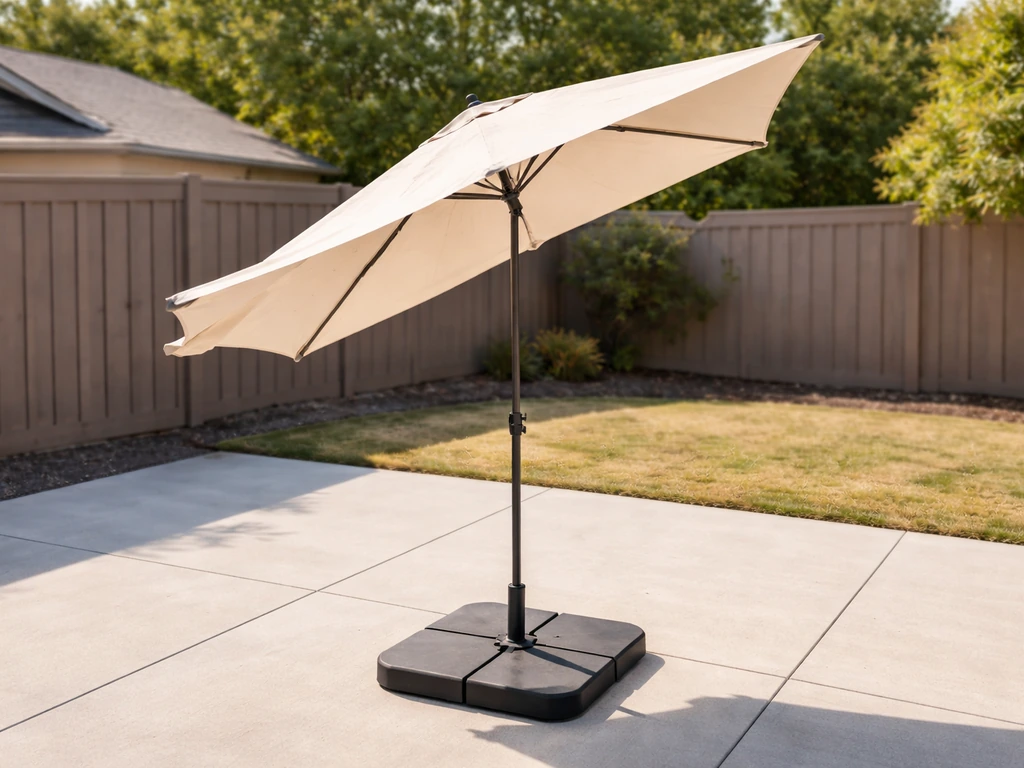

A tilted canopy catches significantly more wind than a flat one. The angle that makes it great for blocking afternoon sun also turns it into a sail if a gust comes through. This is the most important practical thing to understand about auto-tilt umbrellas: they require heavier bases than you might expect, and they need more attention in changing weather.

Treasure Garden is explicit about minimum base weights for its Auto Tilt models: at least 100 pounds for the UM8810RT, 80 pounds for the UM812, and 50 pounds for the UM810. These aren't suggestions. Using an undersized base with a tilted canopy in any kind of breeze is how umbrellas tip over and cause damage or injury. If you're not sure your base is heavy enough, err on the side of more weight.

SunVilla's guidance is direct: never leave the umbrella unattended while fully opened, and never use it in windy conditions, gusts, or storms. When you're done using the umbrella for the day, return the canopy to horizontal using the crank, then close it fully. If you are wondering how to tip a patio umbrella safely, use the same principle of stabilizing the canopy first before you adjust or close it how to tip patio umbrella. If weather is unpredictable, remove the umbrella from the base and store it. This is especially true for auto-tilt models because the tilted position is more aerodynamically vulnerable.

For cantilever models, Treasure Garden's AG25T manual reinforces that you should not use the tilt function during windy conditions and that you must confirm the slider car is fully secure in the track after every adjustment. A slider that isn't locked can shift in a gust and allow the canopy to drop suddenly.

• Always use a base that meets or exceeds the manufacturer's minimum weight rating for your specific model.
• Return the canopy to horizontal before walking away, even briefly. Wind can pick up fast.
• Close and store the umbrella whenever a storm, high winds, or sustained gusts are expected.
• On cantilever models, double-check that the adjustment knob is fully tightened and the slider is secure in the track after every tilt adjustment.
• Do not crank past the mechanical stop point. Forcing the mechanism beyond the maximum tilt limit stresses the internal gears and can crack the housing.
• Perform a post-winter inspection before first use each season. Look for cracks in the pole, housing, or ribs before putting the umbrella back into daily use.
