Mainstays Patio Umbrella Instructions: Setup and Troubleshooting

To assemble and operate a Mainstays patio umbrella, slot the pole sections together, seat the pole in the cross base, thread the ribs through the canopy sleeves, then turn the crank clockwise to open and counterclockwise to close. To tilt, press the tilt button on the pole, angle the canopy to one of the three positions, and release the button to lock it. That covers about 80% of what people search for. The rest of this guide walks through every step in detail, plus fixes for when the crank sticks, the tilt won't lock, the canopy won't fully open, or the whole thing wobbles in the wind.

What you should have: parts list and model identification

Mainstays sells a handful of patio umbrella variants, but the most common one you'll find at Walmart is the 9-foot round market umbrella with a crank-lift handle and 3-position tilt. Depending on color, the style identifier on the box or packaging tag will look something like 'MS 9 FT BLACK UMB' or 'MS-9FT-YELLOW'. If yours has a different suffix, it's likely the same mechanism in a different canopy color. Check the sticker on the pole collar or the bottom of the box to confirm.

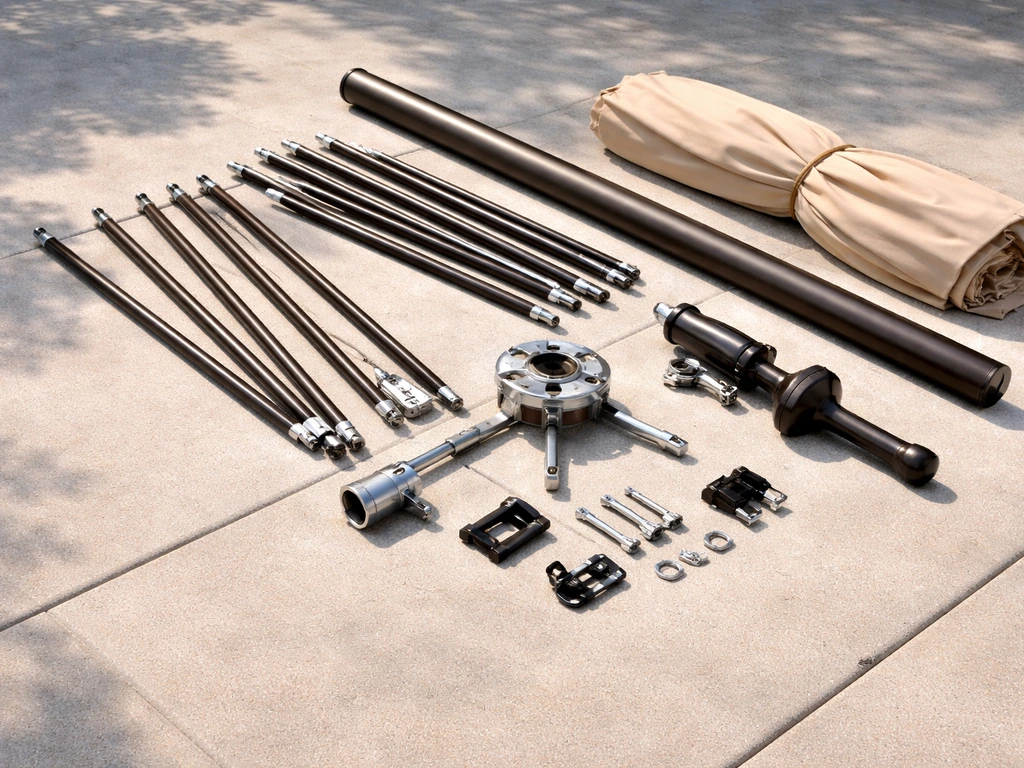

Before you do anything, lay all the parts out on a flat surface and match them to this list. Mainstays umbrellas ship in a single box, and it's surprisingly easy to miss a small part tucked in the cardboard.

• Upper pole section (the thicker top section with the canopy hub attached)
• Lower pole section (the thinner bottom section with the crank handle and tilt button)
• Cross base (the X-shaped metal base with four legs)
• Umbrella canopy (fabric panel with sleeve pockets sewn around the edge for the ribs)
• 8 fiberglass or metal ribs (the spokes that fan out from the hub)
• Rib connectors or runner ring (the sliding ring on the pole that the lower rib struts attach to)
• Crank handle (clips or screws onto the lower pole near the collar)
• Tilt button assembly (usually pre-installed in the lower pole)
• Hardware bag: screws, bolts, and the base center bolt with washer and nut

If you no longer have the paper instruction sheet, the PDF use-and-care manual is hosted on Walmart's product page for the umbrella. For sunnyglade patio umbrella instructions, follow the same general steps for assembly, opening and closing, and seasonal storage PDF use-and-care manual. Searching the exact style identifier from your box will pull it up. That said, this guide covers everything the manual does and more, so keep reading.

Assemble the frame and base correctly (common setup mistakes)

The most common assembly mistake I see is people trying to put the canopy on after the pole is already standing up in the base. Do it the other way: assemble the canopy and ribs on the pole while the pole is still lying on the ground. It's much easier and you're less likely to scratch the pole or bend a rib.

1. Assemble the cross base first. Lay the four base legs flat and slide them together at the center notch so they form an X. Thread the center bolt up through the bottom, add the washer, and hand-tighten the nut. Snug it with a wrench but don't overtighten — you want the legs to sit flat on the ground, not torqued upward.
2. Connect the two pole sections. The lower pole (with the crank) slides into or over the upper pole (with the hub). There is usually a pin or detent button that clicks into a hole to lock them together. Make sure you hear or feel that click before moving on.
3. Thread the ribs through the canopy sleeves. Lay the canopy flat with the underside facing up. Each rib slides through a fabric sleeve or pocket sewn around the edge. Start at one side and work around. Don't skip a sleeve — every rib needs to be seated fully to the end of its pocket.
4. Attach the lower rib struts to the runner ring. The short lower struts connect the outer end of each rib down to the sliding runner ring on the pole. Press each strut's end clip onto the runner ring pin. You'll usually hear a click when it's seated.
5. Stand the pole up and insert it into the cross base center hole. The pole should drop down through the base hole and rest firmly. Some models have a set screw on the base collar — tighten that now to keep the pole from spinning freely.
6. Check that the runner ring slides freely up and down the pole. Before turning the crank, manually push the runner ring upward about six inches and release it. It should drop back down smoothly. If it catches, check that no rib strut is twisted or misrouted.

One gotcha with Mainstays umbrellas specifically: the crank handle sometimes ships unattached and tucked into the canopy bag. If you can't find it, check inside the rolled-up canopy fabric before assuming it's missing. It usually clips onto a collar near the base of the upper pole and locks with a small set screw or friction fit.

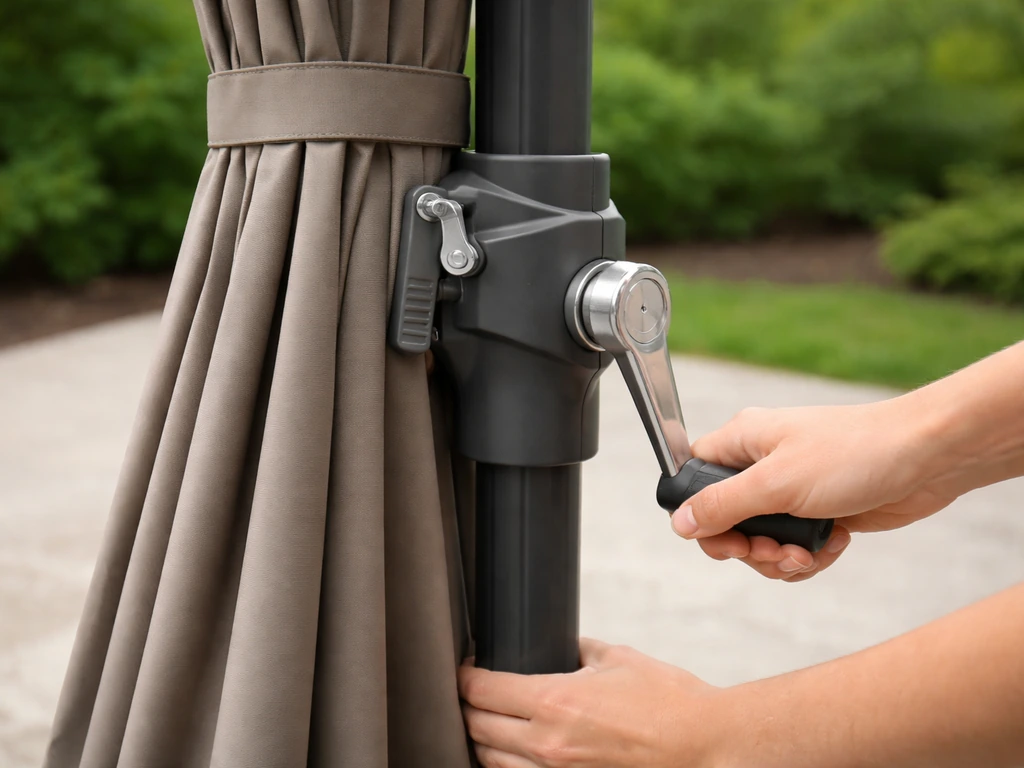

How to open, close, and tilt safely (crank and lock checklist)

Once the umbrella is assembled and standing in the base, here's the correct operating sequence. If you need cantilever patio umbrella instructions for a model with a different support style, look for the same checklist of crank or tilt steps before opening correct operating sequence. Following this order prevents binding and protects the crank mechanism.

1. Make sure the canopy is fully closed (runner ring all the way down) before you start. If it's partially open, close it first by turning the crank counterclockwise.
2. Position yourself on the same side as the crank handle. Grip the handle firmly.
3. Turn the crank clockwise (away from you on the top stroke) in smooth, steady rotations. You should feel light resistance as the runner ring rises and the ribs spread outward. The canopy will rise and fan out.
4. Keep cranking until the canopy is fully extended and you feel firm resistance. Do not force it past that point. The ribs should be taut and level, with no sagging sections.
5. To tilt: locate the tilt button on the lower pole, usually a black or gray push button about 12 to 18 inches up from the base collar. Press and hold the button with your thumb while using your other hand to push the upper pole in the direction you want to tilt. The pole clicks into one of three angles: roughly 15 degrees, 30 degrees, and 45 degrees from vertical.
6. Release the tilt button when you feel the pole drop into the angle you want. It should lock firmly with no wobbling. If it doesn't lock, pull the pole back to vertical and try again — the button needs to be fully released for the detent to engage.
7. To close: if the umbrella is tilted, return it to vertical first (press the tilt button, push the pole upright, release). Then turn the crank counterclockwise until the canopy is fully retracted and the runner ring is at the bottom. Do not leave the umbrella open when unattended, especially in wind.

Quick checklist before each use: crank handle is seated and not loose, tilt button moves freely and springs back out, canopy fabric has no torn sleeve pockets, and the pole sits straight in the base with no lean. For step-by-step instructions on how to use the crank, lock the tilt, and open and close safely, follow the threshold solar patio umbrella instructions. Takes about 10 seconds and saves a lot of frustration.

Troubleshooting when it won't open, close, or tilt

Most problems with Mainstays umbrellas come down to three things: a stuck or stripped crank, a jammed tilt button, or a lift cord that's frayed or tangled inside the pole. Here's how to work through each one.

Canopy won't open fully or gets stuck halfway

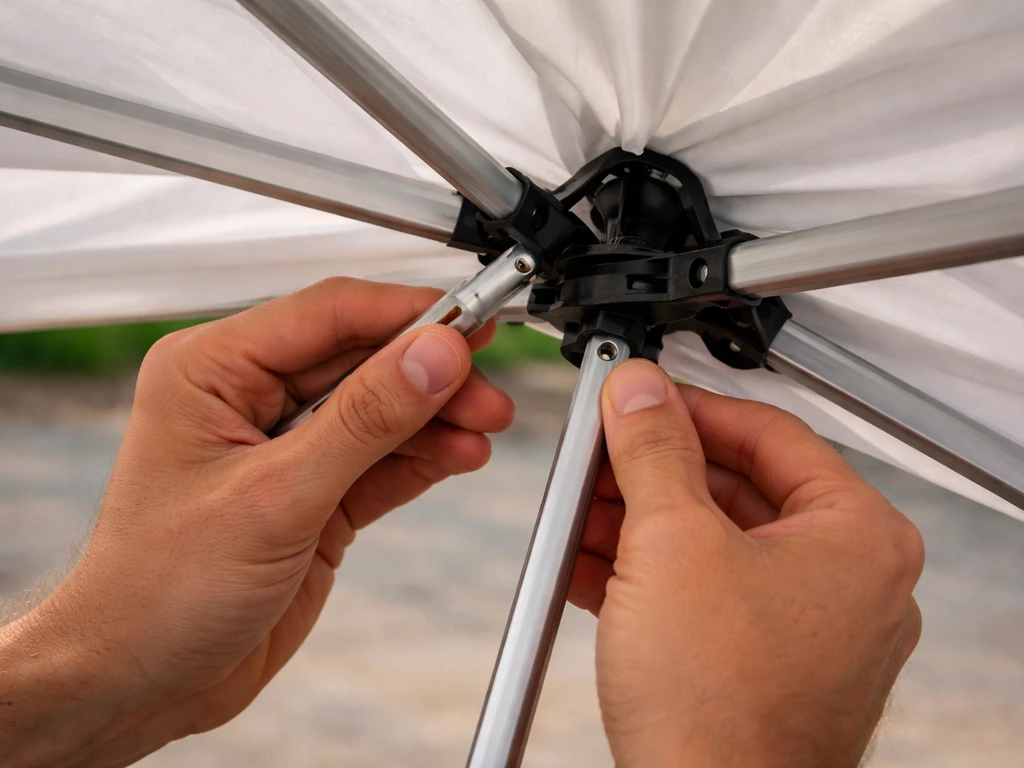

• Check for a rib strut that has popped off the runner ring. Look for any rib that isn't spreading out at the same angle as the others. Pop the strut back onto the runner ring pin and try again.
• Check that the canopy fabric isn't bunched or twisted around the hub. Collapse the umbrella, shake out the canopy, and reopen.
• If the crank turns but the canopy doesn't rise, the internal lift cord has likely snapped or come off its pulley. You'll need to remove the crank collar, expose the cord, and rethread or replace it. Replacement cord is inexpensive (a few dollars at a hardware store) and the repair is worth doing.
• If the crank turns but feels like it's spinning in place with no resistance, the crank gear or cord anchor has stripped. Inspect the crank housing for cracked plastic teeth — if stripped, the crank assembly needs replacement.

Canopy won't close or runner ring won't drop

• Turn the crank counterclockwise and apply gentle downward pressure on the canopy edge at the same time. Sometimes the runner ring needs a little help dropping past a friction point on the pole.
• Check that none of the lower rib struts have come unclipped and are catching on the pole. A single strut riding against the pole surface will jam the runner ring.
• If the cord is tangled inside the pole, you may hear it rattling. Lay the pole horizontal and shake it lightly while cranking. If it frees up, crank it through a few full open/close cycles to let the cord reseat.

Tilt button won't push, won't lock, or tilts unevenly

• If the button is stiff or won't push at all: spray a small amount of silicone lubricant around the button housing and work it in and out a few times. Do not use WD-40 — it will attract dirt and make it worse over time.
• If the button pushes but won't lock into an angle: the detent spring behind the button may be weak or broken. You can often source a replacement spring at a hardware store, but if the plastic housing around the button is cracked, replace the tilt collar section.
• If the umbrella tilts but leans to one side rather than straight: the upper and lower pole sections may not be fully locked together. Collapse the umbrella, re-seat the pole joint, confirm the locking pin is engaged, and try again.
• Uneven tilt can also come from a bent rib. Open the canopy flat and sight down each rib. A bent rib will cause the canopy to dip on one side. Fiberglass ribs can sometimes be gently straightened; metal ribs usually need replacement.

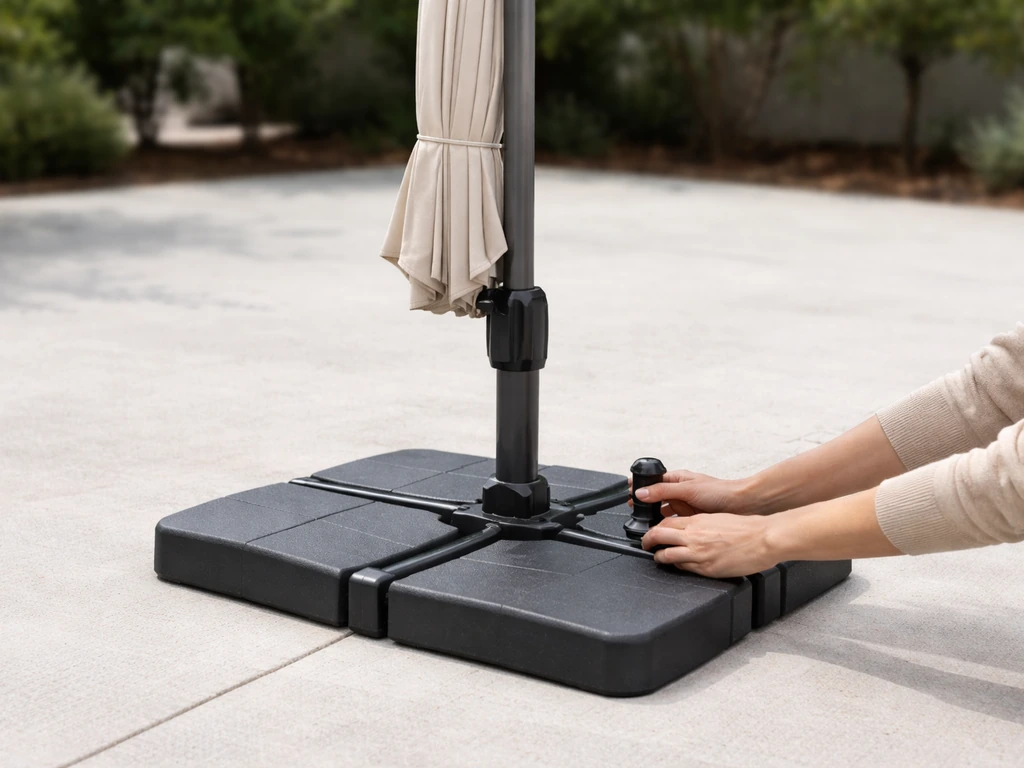

Fixing stability issues: pole alignment and base locking

A wobbly or leaning Mainstays umbrella is almost always a base or pole collar problem, not a defect in the umbrella itself. There are a few quick fixes worth trying before assuming you need a new base.

1. Check that the cross base legs are sitting fully flat on the ground. If one leg is riding up, the whole umbrella will lean. On uneven surfaces like a deck with gaps, use rubber shims or a patio umbrella base pad to level it out.
2. Tighten the center base bolt. Over time the nut loosens and the legs splay slightly, reducing stability. Hand-tighten and then give it a quarter turn with a wrench.
3. Tighten the set screw on the base collar (the ring where the pole enters the base). This is usually a hex screw on the side of the collar. A loose collar lets the pole rock back and forth even if the base itself is solid.
4. Check the pole joint between the upper and lower sections. If that connection is loose, the whole upper half will sway. Re-seat it and confirm the locking pin is engaged.
5. Add a patio umbrella base weight or fill a heavy-duty base with sand or water if the cross base alone isn't holding well enough. Mainstays cross bases are lightweight by design — they're fine for still days but benefit from extra weight in breezy conditions.

If the pole itself is visibly bent, there's no straightforward fix, a bent pole puts uneven stress on every other component and will cause more problems over time. A replacement pole section from Walmart or a generic 1.5-inch diameter market umbrella pole often fits Mainstays models and costs under $20.

Wind and safety practices: securing or stowing the umbrella

The number one cause of a wrecked Mainstays umbrella is leaving it open in wind. These umbrellas are not designed to stand up to sustained gusts, and an open 9-foot canopy acts like a sail. I've seen them flip table and all, which is dangerous and completely avoidable.

• Close and tilt to vertical any time you're not actively using the umbrella, including any time wind picks up above a light breeze.
• If you're in an area with afternoon thunderstorms (common in summer), make it a habit to close the umbrella every time you go inside.
• Use a bungee cord or velcro tie to secure the closed canopy to the pole when stowed. This keeps the canopy from catching wind even when 'closed' if there's a gust.
• Do not rely on the cross base alone as your wind anchor in any exposed location. A filled umbrella base (the weighted type designed to sit under a patio table) adds significant stability. For standalone use, stake the base legs to the ground with ground anchors through the leg holes.
• In advance of severe weather, remove the umbrella from the base entirely and store it horizontally, either indoors or under a cover. The pole detaches from the base in seconds and the whole assembly can be stored flat against a fence or wall.
• Never leave the umbrella open and unattended overnight, even if the weather looks calm when you go to bed.

Unlike some heavier-duty models, Mainstays umbrellas don't have wind vents built into the canopy. Wind vents allow air to pass through and dramatically reduce lift. If you're in a consistently windy area and want a more wind-tolerant option, that's a real limitation of this model to consider. In the meantime, the habits above are your best protection.

Maintenance, cleaning, and seasonal storage/winterizing

A Mainstays umbrella is an entry-level product, but with basic care it can last three to five seasons without issue. Most premature failures come from neglect: leaving the umbrella out through rain and sun, not cleaning mildew off the fabric, and storing it wet. Here's what actually keeps it running.

Regular cleaning (every few weeks during the season)

1. Open the umbrella fully and brush off any loose debris with a soft brush.
2. Mix a solution of mild dish soap and warm water (a few drops of soap per quart of water). For mildew, add a tablespoon of white vinegar to the mix.
3. Scrub the canopy fabric with a soft brush or cloth, working from the center hub outward toward the edges. Get into the folds near the rib pockets where mildew tends to hide.
4. Rinse thoroughly with a garden hose. Make sure to rinse under the canopy as well, not just the top.
5. Leave the umbrella open and allow it to air-dry completely before closing. Closing it wet is what causes mildew to set in.

Mechanical maintenance (once or twice per season)

• Apply a small amount of silicone spray to the crank gear housing and the runner ring channel on the pole. This keeps the opening action smooth and prevents the crank from binding.
• Wipe down the pole with a damp cloth to remove bird droppings, sap, or mineral deposits from rain. These can corrode the metal over one to two seasons.
• Inspect the lift cord inside the pole by opening the umbrella and looking into the top of the lower pole section. If the cord looks frayed, worn, or discolored, replace it before it snaps mid-season. Replacement cord costs about $3 to $5.
• Check all rib connector pins for bending or cracking. Mainstays ribs are generally fiberglass and hold up well, but the small metal connector pins can rust or bend at the joints.

End-of-season storage and winterizing

1. Close the umbrella fully and let it dry in the sun for at least two hours before storing.
2. Remove the canopy if possible. Most Mainstays canopies velcro or button onto the frame and can be machine-washed on a gentle cycle in cold water. Air-dry only — the dryer will shrink the rib pockets.
3. Separate the pole sections and wipe each section down with a dry cloth. Apply a thin coat of paste wax or car wax to the metal pole sections to prevent rust. Pay special attention to the joint where the two pole sections meet.
4. Store the canopy, ribs, and pole sections in the original box or a long umbrella storage bag. A bag is worth the few dollars it costs — it keeps dust, moisture, and pests out.
5. Store the cross base separately. Wipe it down and store it in a dry location. If the base has any surface rust starting, hit it with a wire brush and a coat of spray paint before storing.
6. Do not store in an unventilated shed where temperature swings and humidity are extreme. A dry garage, basement, or closet is ideal.

When you pull the umbrella out next spring, do a quick test before the first use: check the lift cord, lubricate the crank and tilt button, and open it up in the yard to make sure every rib seats correctly. Five minutes of inspection at the start of the season prevents the frustration of discovering a problem when guests are already arriving. If you're working with a different style of umbrella, the mechanics vary more than you'd think: auto-tilt and cantilever umbrellas, for example, have completely different tilt mechanisms and more involved setup steps. For auto-tilt patio umbrella instructions, follow the tilt mechanism steps specific to your model to make sure the button locks correctly.
